SMC-4000 Slipform Paver: Redefine Your Paving Efficiency in Curbstone & Road Construction

Name: SMC-4000 Slipform Paver: Redefine Your Paving Efficiency in Curbstone & Road Construction
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMC-4000
Availability: InStock

Λεπτομέρειες για το προϊόν

Τόπος καταγωγής: Jiangsu, Κίνα

Μάρκα: SIMING

Πιστοποίηση: ISO9001/CE

Αριθμό μοντέλου: SMC-4000

Όροι πληρωμής και αποστολής

Ποσότητα παραγγελίας min: 1 Μονάδα

Συσκευασία λεπτομέρειες: Αποστολή εμπορευματοκιβωτίων

Χρόνος παράδοσης: 15-20 εργάσιμες ημέρες

Πάρτε την καλύτερη τιμή

Λεπτομέρειες για το προϊόν

Περιγραφή του προϊόντος

Επισημαίνω:
                                                                                                                                                                                                                                                                                SMC-4000 slipform paver for curbstones, concrete slip form paver for road construction, efficient paving machine with warranty


Πλάτος οδοστρώματος:	200 χιλιοστά	Υψόμετρο του στρώματος:	900 mm
Μοντέλο:	Προσαρμοσμένο	Ταχύτητα οδοστρώματος:	0-12 m/min
Ταχύτητα ταξιδιού:	0-45 M/min	Συνολικές διαστάσεις:	5000 x 2160 x 2550 mm
Κατάσταση:	ΝΕΟ

Πλάτος οδοστρώματος:	200 χιλιοστά
Υψόμετρο του στρώματος:	900 mm
Μοντέλο:	Προσαρμοσμένο
Ταχύτητα οδοστρώματος:	0-12 m/min
Ταχύτητα ταξιδιού:	0-45 M/min
Συνολικές διαστάσεις:	5000 x 2160 x 2550 mm
Κατάσταση:	ΝΕΟ

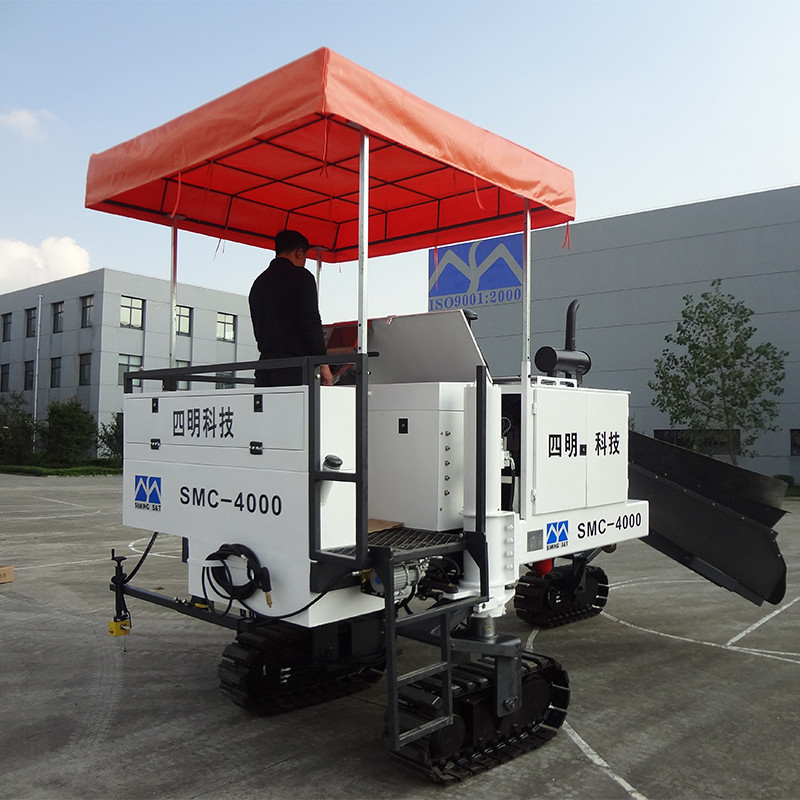

SMC-4000 Slipform Paver: Redefine Your Paving Efficiency in Curbstone & Road Construction

Breakthrough in Paving Technology

The SMC-4000 Slipform Paver is not just a machine; it's a revolution in road construction equipment. Specially designed for curbstones, road shoulders, and slope protection projects, this fully hydraulic, electronically controlled paver integrates three-track walking/steering technology, bringing unmatched driving power, agile steering, and extraordinary construction efficiency to your worksite. Whether it's complex terrain or tight schedules, SMC-4000 is the game-changer you need.

Core Competencies That Stand Out

Smart CAN Bus Control: The industrial-grade CAN bus communication links the control panel and main controller, enabling seamless operation and rock-solid system reliability--say goodbye to complicated debugging.
Intelligent LCD Monitoring: A wide-screen LCD display puts the entire machine's working status and fault alerts right at your fingertips, making on-site management a breeze.
Hydraulic Precision Engineering: Full hydraulic track drive + offset mold technology slashes positioning time before pouring, allowing smooth paving even in the most challenging conditions.
Adaptive Feeding System: Rotatable, tiltable, and biasable feeding screw/belt adapts to diverse material flows, boosting work efficiency beyond industry standards.
Eco-Friendly Hydraulic Power: Imported load-sensitive variable pump + premium hydraulic components minimize energy waste and heat buildup, ensuring long-term, cost-effective operation.
Auto-Leveling & Steering Mastery: Automatic leveling guarantees a flawlessly flat paving surface, while auto-steering delivers pin-point linearity--every time.
Rapid-Clean Flushing System: High-pressure water pump cleans the entire slipform system in minutes post-construction, saving you valuable time for the next project.

Technical Parameters

No.	Project	Unit	Parameter
1	Engine	/	Cummins QSF2.8/Quanjiao QC4102G or others
2	Hydraulic vibration	/	5-way vibrating oil circuit, standard configuration of 2 vibrating rods
3	Paving speed	m/min	0～12
4	Driving speed	m/min	0～45
5	Paving Radius	cm	60
6	Paving size	cm	Curb stone width 200*height 90
7	Host weight	kg	5500
8	Shipping size(LWH)	mm	500021602550

Construction Case

From arid desert curbstones to rugged mountain slope protections, from urban road shoulder upgrades to bridge-side precision paving--SMC-4000 has proven its mettle in every terrain. Contractors worldwide trust its adaptability, durability, and consistent high performance to deliver projects on time and within budget.
